MoonBot Navigation
MoonBot Navigation
Autonomous navigation and interaction stack for a lunar rover prototype. Built during my visiting research at Tohoku University’s Space Robotics Lab (TESP 2025); winner of the TESP 2025 Competition.
GitHub Repository Project Overview
- Built an autonomous mobile robot to navigate a sandy, uneven “lunar” arena, avoid obstacles, detect targets, and actuate a custom gripper to interact with objects.
- End-to-end pipeline: vision → mapping → Dijkstra path planning → PD control → onboard actuation and interaction.
- Space Robotics Lab project under Prof. K. Yoshida (Tohoku University); awarded 1st place and Research Certificate of Excellence at TESP 2025.
Hardware & Electronics

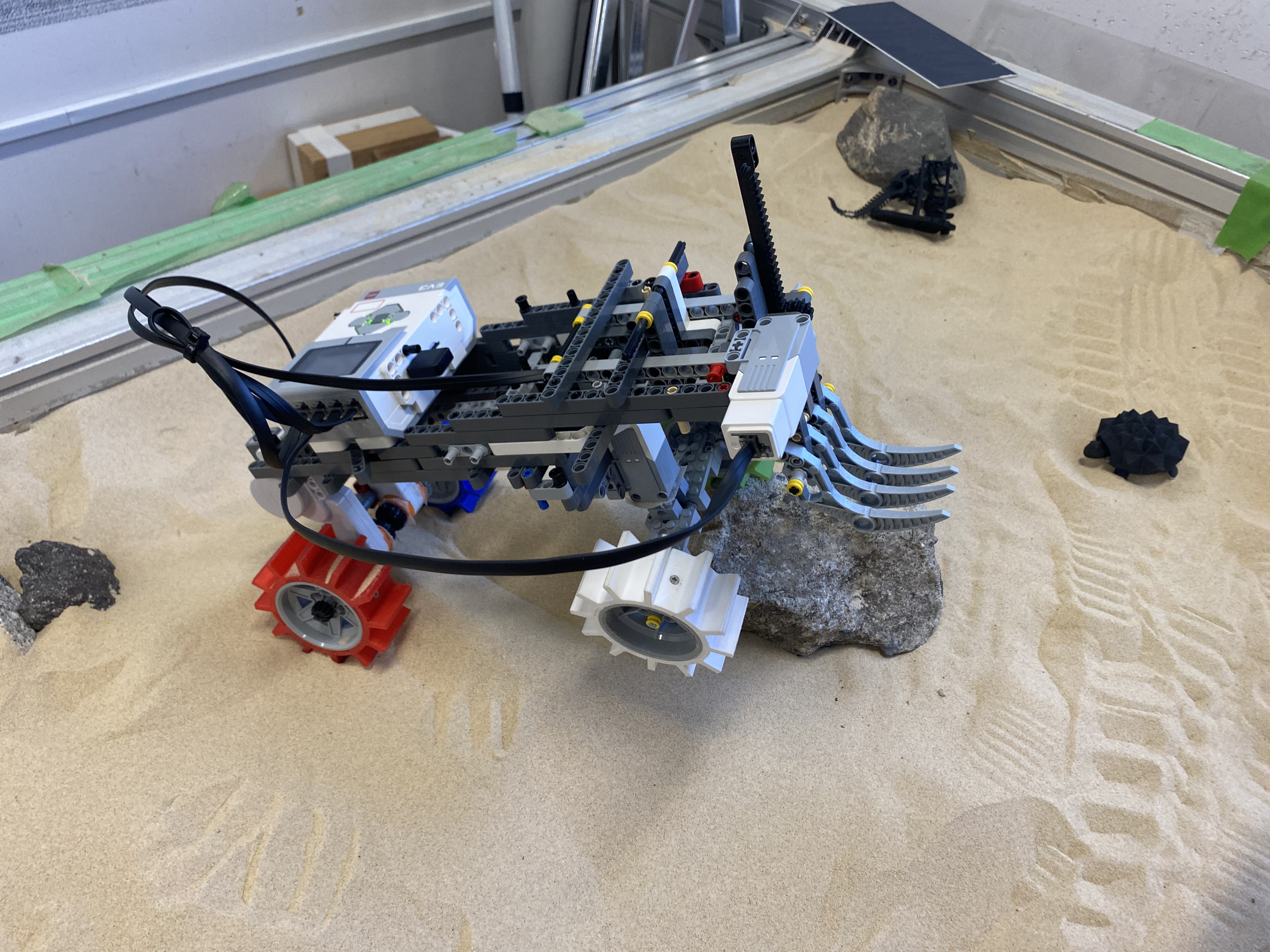

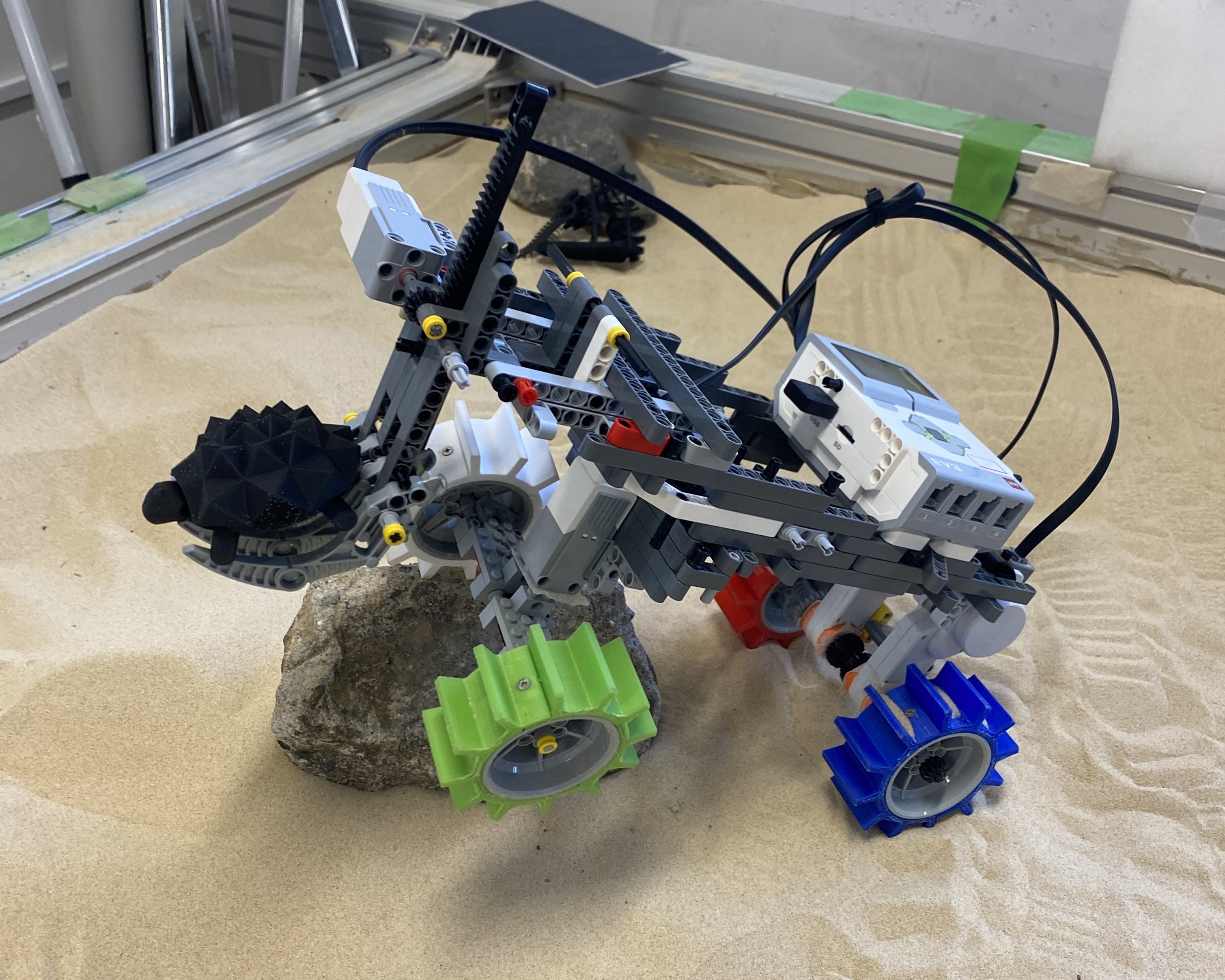

- Robot evolution: four iterations (Tsukikage → Seigetsu → Mikazuki → final “Tenshiko”) to balance power, traction on sand, and gripper stability.

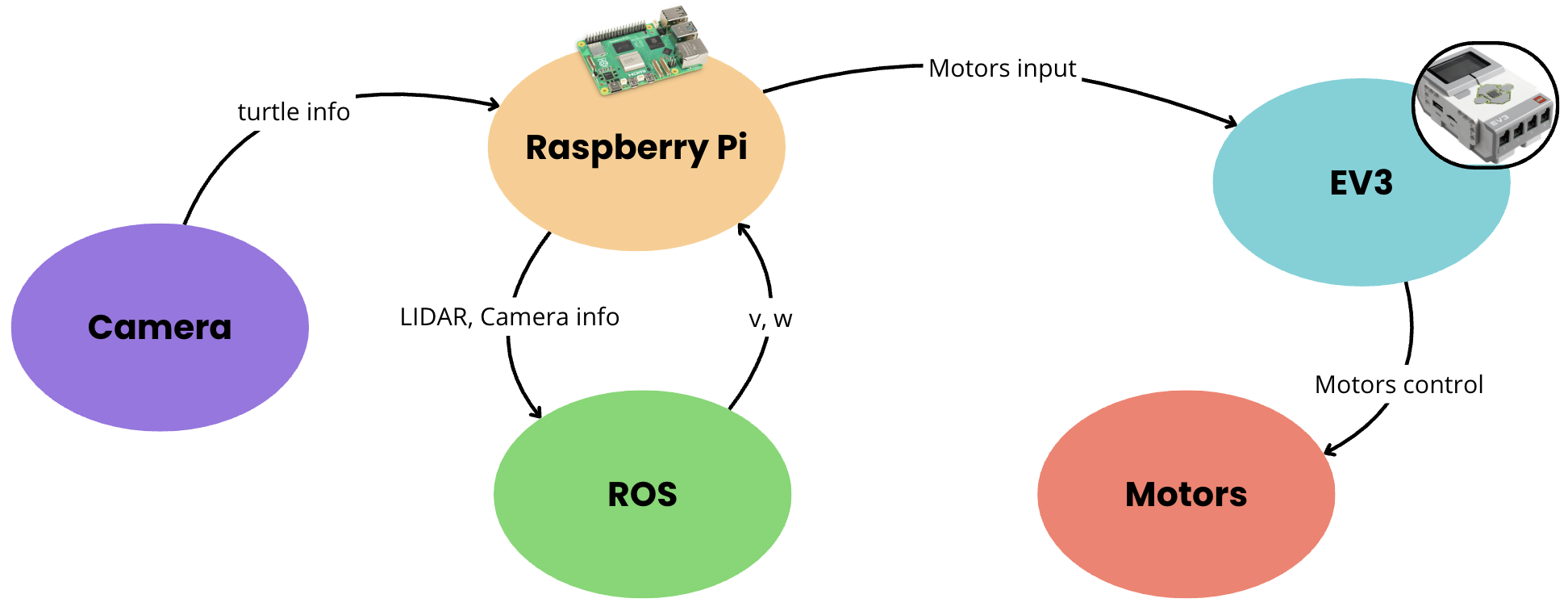

- Compute & control: Raspberry Pi for perception/planning, EV3 brick for motor control, camera module for target detection.
- Actuation: Loader-style linear gripper kept off the ground during navigation to reduce drag and slippage.
Navigation & Mapping

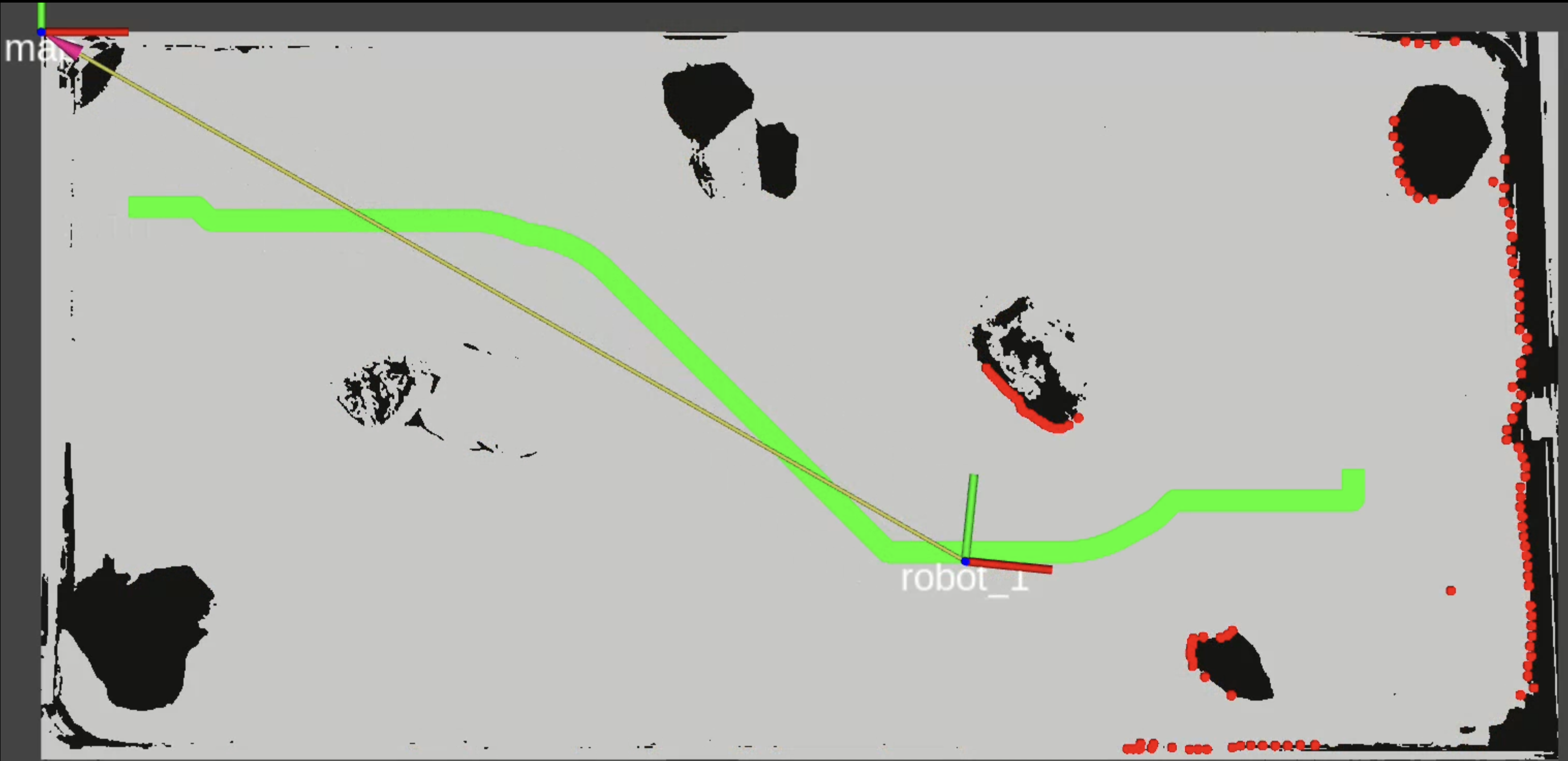

- Planner: Dijkstra over a binary occupancy map with a distance transform + retraction to pull paths away from obstacles.
- Controller: PD controller outputs linear/angular velocity for smooth tracking.

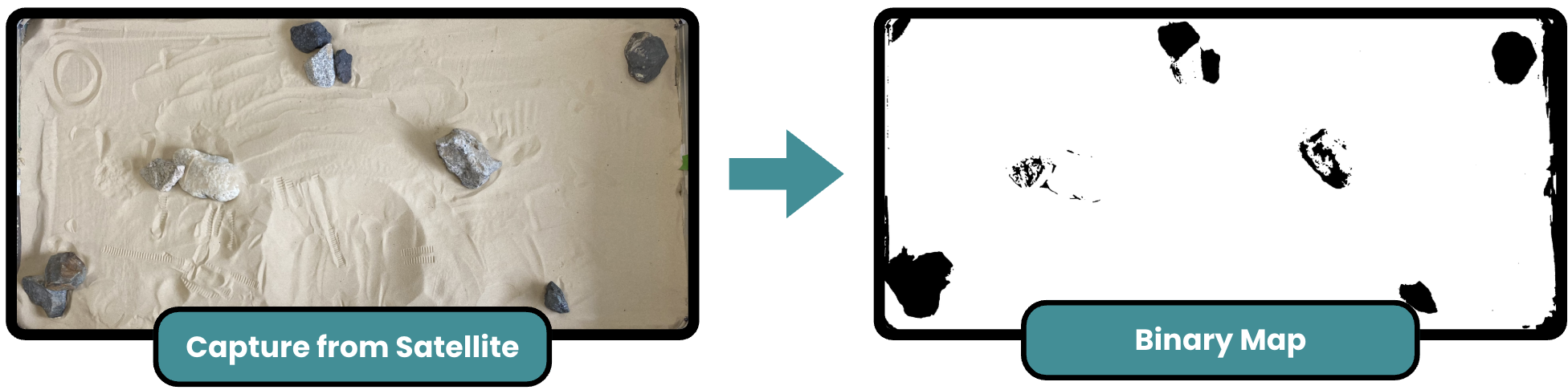

- Vision-to-map: threshold satellite-style image → binary map → distance map → safe navigation zone.

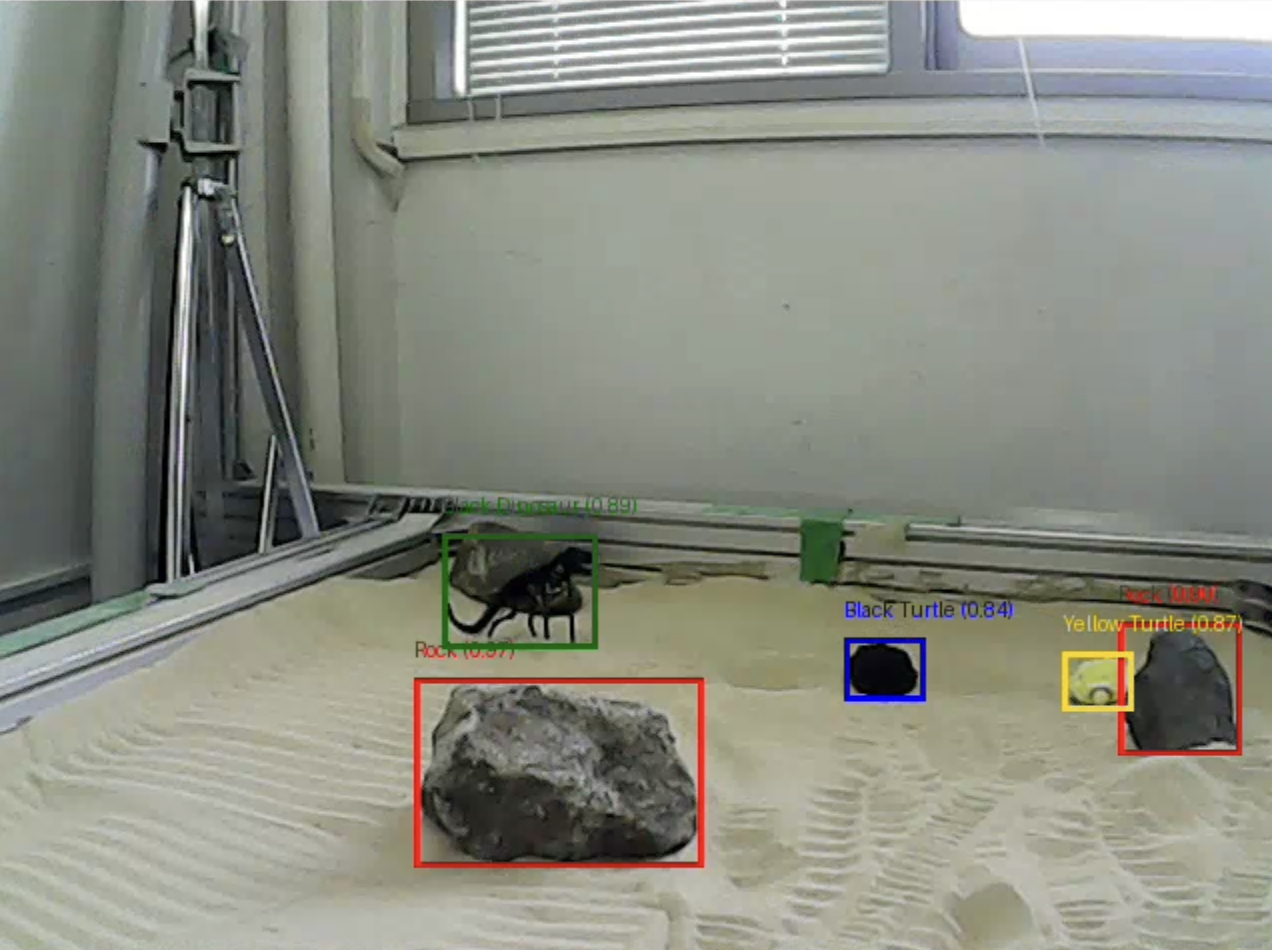

Object Detection & Interaction
- Dataset: 240 labeled images; trained via Roboflow for lightweight detection of target “turtles.”
- Model: Simple CV detector to center targets and trigger interaction.
- Flow: Short-range visual servoing keeps targets centered; gripper actuates once aligned.
