DNSD: Making Sheaf Diffusion Work at Depth
Published:
Authors: Rémi Bourgerie, Šarūnas Girdzijauskas, Viktoria Fodor — KTH Royal Institute of Technology, Stockholm

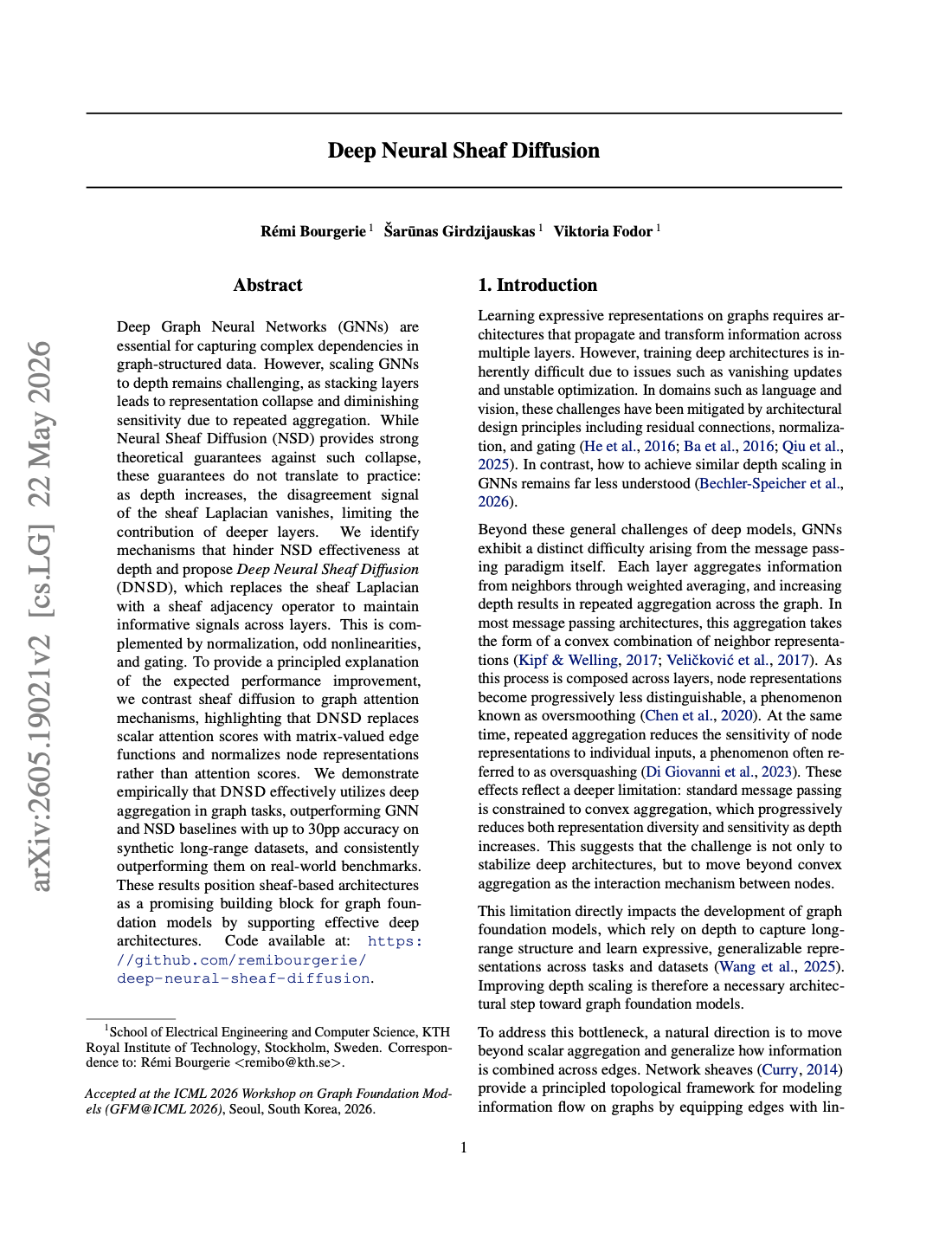

Preprint: arXiv:2605.19021, May 2026
The guarantee that eats itself
Neural Sheaf Diffusion came with a genuinely strong theoretical result. Given an appropriate sheaf, linear sheaf diffusion converges to \(\ker(\Delta_{\mathcal{F}})\) — the space of global sections — and that limit is rich enough to separate almost any label assignment. Where a GCN collapses every node onto a single degree-scaled vector, sheaf diffusion collapses onto a space that can still tell classes apart. That is the whole argument for sheaves as a cure for oversmoothing.
The trouble is what “converges” means for a network built by stacking diffusion steps as layers.
Recall the block structure of the sheaf Laplacian. For restriction maps \(\mathcal{F}_{u \trianglelefteq e}\), the diagonal and off-diagonal blocks are
and with \(\Delta_{\mathcal{F}} = D_{\mathcal{F}}^{-1/2} L_{\mathcal{F}} D_{\mathcal{F}}^{-1/2}\) the linear diffusion is \(X^{(t+1)} = (I_{nd} - \Delta_{\mathcal{F}})X^{(t)}\).
Now read that operator as a signal generator rather than as a limit theorem. \(\Delta_{\mathcal{F}}X\) is a disagreement measure: it is large when neighbouring stalks, after transport through their restriction maps, point in different directions. Diffusion’s job is to make that quantity small. It succeeds. And every layer’s update is driven by exactly that quantity.
There is a second-order version of the same problem at initialisation. Randomly initialised restriction maps produce a disagreement signal that is both small and mostly noise, so the deeper layers begin training with little to learn from.
Four changes
The NSD layer, for reference, is
DNSD changes it to
Four modifications, in descending order of how much they matter.
1. Adjacency instead of Laplacian
The sheaf adjacency operator keeps only the off-diagonal blocks, without the minus sign:
Compare the two. \(L_{\mathcal{F}}\) subtracts the neighbour’s transported stalk from the node’s own; \(A_{\mathcal{F}}\) simply transports the neighbour’s stalk and hands it over. The first measures difference, the second aggregates dependency. Only the first has a reason to vanish as the network does its job.
This is the change that carries the paper. In the ablations, variants with the adjacency operator gain 20–30 percentage points over NSD at mid-heterophily on the synthetic benchmark, and variants without it sit near the baseline regardless of what else is turned on.
The appendix makes the break sharper than the main text does. In the general formulation the per-edge coboundary for stalk \(s\) is \(\delta^{(s,l)}_e = [\mathcal{F}_{\mathrm{src},e}]_{s,:} X^{(l)}_u - [\mathcal{F}_{\mathrm{tgt},e}]_{s,:} X^{(l)}_v\). With the adjacency flag set, only the target term is retained. A coboundary with one term is not a coboundary; it is a projection. The cochain-complex scaffolding is genuinely gone, not merely rearranged.
2. Layer normalisation
Applied per stalk, normalising across the feature dimension \(f\):
with \(\mu_u, \sigma_u \in \mathbb{R}^d\) computed per stalk and \(\gamma^{(l)}, \beta^{(l)} \in \mathbb{R}^f\) shared across nodes and stalks. Note the granularity: each stalk is normalised independently, so the operation does not wash out differences between stalks of the same node — which would defeat the point of having \(d\) of them.
3. An odd, bounded activation
NSD uses ReLU. In an update where the message term is subtracted from a residual, a one-sided nonlinearity gives a one-sided update: coordinates can only move in one direction. Compose that across sixteen layers and the representation geometry drifts.
DNSD uses \(\tanh\). Odd, so positive and negative interactions contribute symmetrically; bounded, so repeated composition cannot amplify. The paper’s ablations put this second in importance, with gains concentrated at moderate heterophily.
4. Per-stalk gating
A scalar per stalk, computed from the current embedding and the aggregated signal, broadcast across the \(f\) feature dimensions. Weights are zero-initialised so the gate starts at \(0.5\). The paper is refreshingly plain that this mainly reduces variance across runs rather than lifting peak accuracy.
The attention comparison is the best part
Section 4 reframes all three architectures along three axes, and it is the clearest thing in the paper.
| Update operator | Edge transformation | Normalisation | Behaviour at depth | |
|---|---|---|---|---|
| GAT | dependency (adjacency) | scalar attention score | softmax over scores | averaging, collapse |
| NSD | difference (Laplacian) | matrix-valued linear map | operator (degree) | vanishing signal |
| DNSD | dependency (adjacency) | matrix-valued linear map | operator + representations | signal maintained |
Read the middle column and the sheaf idea lands in one line: attention weights a neighbour by a scalar, a sheaf transforms it by a matrix. Read the last two columns and the two failure modes separate cleanly. Attention normalises the coefficients with a softmax, which forces a convex combination — the aggregation is an average, and averages collapse. NSD normalises the operator but computes differences, which vanish. DNSD does neither: it aggregates without a softmax, so the combination need not be convex, and normalises the representations afterwards instead.
That framing explains why the two fixes are not interchangeable. You cannot rescue GAT by adding LayerNorm, because the convexity is imposed by the softmax upstream of it.
Results, including the ones in the appendix
On the real-world heterophilic suite, the largest gains are on Roman Empire and Penn94:
| Dataset | NSD (diag) | DNSD (diag, adj+odd) | Δ |
|---|---|---|---|
| Roman Empire | 79.1 ± 0.5 (L8) | 83.2 ± 0.7 (L8) | +4.1 |
| Penn94 | 76.3 ± 0.1 (L2) | 80.0 ± 0.9 (L8) | +3.7 |
| Amazon Ratings | 44.6 ± 0.3 (L8) | 49.1 ± 0.7 (L8) | +4.5 |
| Tolokers | 81.5 ± 0.2 (L8) | 82.0 ± 0.2 (L8) | +0.5 |
| Questions | 97.1 ± 0.0 (L2) | 97.1 ± 0.0 (L2) | 0.0 |
Note the depth column as much as the accuracy: NSD’s best Penn94 configuration is two layers, DNSD’s is eight. That is the paper’s actual claim — not that sheaves win, but that sheaves can now be made deep.
- Chameleon (filtered): NSD diag 41.5, best DNSD 39.1, plain MPNN 45.5
- Squirrel (filtered): NSD diag 35.4, best DNSD 33.5, plain MPNN 43.1
- Actor: NSD diag 36.2, best DNSD 36.4, plain MLP 37.0
The synthetic benchmark deserves the same scrutiny. It runs eleven perturbation levels from G0 (homophilic) to G10 (fully heterophilic), and the interesting result is in the middle. At the endpoints the task is easy or degenerate: at G10 an ordinary MPNN reaches 94.7 and everything clusters around 95–97, while at G0 DNSD is the worst method tested — 45.7 ± 10.1 against 53.0 for NSD and 67.2 for GAT. Dropping the Laplacian costs you the homophilic case. That is a coherent trade, but it is a trade.
Two details worth carrying forward
Diagonal maps keep winning. Across datasets, diagonal restriction maps match or beat full ones despite having \(O(d)\) parameters per edge instead of \(O(d^2)\). This is now the third independent paper to report it, and the authors explicitly connect their finding to PolyNSD. Whatever expressive power full \(d \times d\) maps have in principle, it is not the power these benchmarks reward. Orthogonal maps were excluded because they “were found to be difficult to train robustly at depth” — an honest negative result that is easy to miss.
The parameter count is not free. At sixteen layers on the synthetic benchmark, DNSD-diag has 5,007 parameters against NSD-diag’s 2,655. Roughly \(1.9\times\), on top of running four times deeper. The comparison is depth-matched in the tables but not parameter-matched anywhere.
What I would want next
The paper’s own limitations section names the right things — node classification only, medium-scale graphs, and a benchmark landscape that does not isolate depth. I would add two:
- A theory for \(A_{\mathcal{F}}\). The Laplacian came with a spectral story: PSD, kernel equals global sections, diffusion converges. \(A_{\mathcal{F}}\) has none of that yet. It is not symmetric PSD in general, its spectrum is unconstrained, and there is no analogue of the separability theorem. The empirical case is made; the mathematical one is open.
- Why 12–16 and not more. Every reported best sits at the top of the searched grid \(\{2,4,8,12,16\}\). A method whose headline claim is depth scaling should be pushed until it breaks — otherwise the result reads as “we did not find the ceiling” rather than “the ceiling is here”.
✅ Key Takeaways
- NSD's depth problem is structural, not incidental: the update is driven by \(\Delta_{\mathcal{F}}X\), and diffusion drives that quantity to zero. Succeeding at the objective starves the network.
- DNSD replaces the Laplacian with the sheaf adjacency \((A_{\mathcal{F}})_{uv} = \mathcal{F}_{u \trianglelefteq e}^{\top}\mathcal{F}_{v \trianglelefteq e}\) — dependency rather than difference. This single change accounts for most of the gain; LayerNorm, \(\tanh\), and gating are stabilisers.
- The cost is theoretical: no Laplacian means no convergence-to-global-sections guarantee, and the coboundary loses a term, so the cochain structure is gone rather than generalised.
- The three-axis comparison with attention (difference vs dependency; scalar vs matrix edge functions; normalising scores vs normalising representations) is the most portable idea in the paper.
- Check the appendix: DNSD is beaten by a plain MPNN on Chameleon and Squirrel by 6–10 points, and those datasets appear only there.
- Diagonal restriction maps match or beat full ones again — consistent with PolyNSD, and increasingly hard to dismiss as a quirk.
References
- Bourgerie, R., Girdzijauskas, Š., & Fodor, V. (2026). Deep Neural Sheaf Diffusion. arXiv:2605.19021.
- Bodnar, C., Di Giovanni, F., Chamberlain, B. P., Liò, P., & Bronstein, M. (2022). Neural Sheaf Diffusion: A Topological Perspective on Heterophily and Oversmoothing in GNNs. Advances in Neural Information Processing Systems 35.
- Borgi, A., Silvestri, F., & Liò, P. (2025). Polynomial Neural Sheaf Diffusion: A Spectral Filtering Approach on Cellular Sheaves. arXiv:2512.00242.
- Hansen, J., & Ghrist, R. (2019). Toward a Spectral Theory of Cellular Sheaves. Journal of Applied and Computational Topology, 3(4), 315–358.
- Brody, S., Alon, U., & Yahav, E. (2021). How Attentive Are Graph Attention Networks? arXiv:2105.14491.
- Platonov, O., Kuznedelev, D., Diskin, M., Babenko, A., & Prokhorenkova, L. (2023). A Critical Look at the Evaluation of GNNs Under Heterophily: Are We Really Making Progress? International Conference on Learning Representations.
- Zaghen, O., Longa, A., Azzolin, S., Telyatnikov, L., Passerini, A., & Liò, P. (2024). Sheaf Diffusion Goes Nonlinear: Enhancing GNNs with Adaptive Sheaf Laplacians. ICML 2024 Workshop on Geometry-grounded Representation Learning and Generative Modeling.
