DDPM Training: From a Variational Bound to Four Lines of PyTorch

The bound and what it decomposes into

The marginal likelihood \(p_\theta(\mathbf{x}_0)\) integrates over every trajectory, so we bound it in the usual variational way, using the fixed forward process \(q\) as the proposal:

Written naively this is a single expectation over a thousand-step trajectory, which would have hopeless variance. The move that saves it is to rewrite \(q(\mathbf{x}_t\mid\mathbf{x}_{t-1}) = q(\mathbf{x}_{t-1}\mid\mathbf{x}_t,\mathbf{x}_0)\,q(\mathbf{x}_t\mid\mathbf{x}_0)/q(\mathbf{x}_{t-1}\mid\mathbf{x}_0)\), so that the product telescopes and \(\mathcal{L}\) becomes a sum of per-step KL divergences:

\(\mathcal{L}_T\) contains no parameters at all — the forward process is fixed and the prior is fixed — so it is a constant, small if the schedule ends near \(\bar{\alpha}_T \approx 0\). \(\mathcal{L}_0\) is a discretised likelihood on the final step. Everything trainable sits in the middle sum, and every term there is a KL between two Gaussians with the same fixed covariance \(\sigma_t^2\mathbf{I}\), which is just a scaled squared distance between means:

There is no Monte Carlo over trajectories left: the closed-form posterior supplies the target directly.

The substitution that collapses it

Both means share the same functional form. Using \(\tilde{\boldsymbol{\mu}}_t = \frac{1}{\sqrt{\alpha_t}}\big(\mathbf{x}_t - \frac{\beta_t}{\sqrt{1-\bar{\alpha}_t}}\boldsymbol{\epsilon}\big)\) and parameterising the model identically with \(\boldsymbol{\epsilon}_\theta\) in place of \(\boldsymbol{\epsilon}\), the \(\mathbf{x}_t\) terms cancel exactly and only the noise difference survives:

A variational bound over a thousand-step latent-variable chain has become a weighted regression on noise. The weight \(w_t = \beta_t^2/\big(2\sigma_t^2\alpha_t(1-\bar{\alpha}_t)\big)\) is a known scalar; nothing about it involves the network.

Why throwing the weight away helps

Ho et al. train instead on

This is not a bound on the likelihood any more, and it is not an approximation made for convenience — the samples are better. The reason is visible in \(w_t\). Take \(\sigma_t^2 = \beta_t\), so \(w_t = \beta_t/\big(2\alpha_t(1-\bar{\alpha}_t)\big)\). On the linear schedule at \(t=1\), \(\beta_1 = 10^{-4}\) and \(1-\bar{\alpha}_1 = 10^{-4}\), giving \(w_1 \approx 0.5\). At \(t = 500\), \(\beta_t \approx 0.01\) and \(1-\bar{\alpha}_t \approx 0.921\), giving \(w_{500}\approx 0.0055\) — roughly ninety times smaller. At \(t=1000\), \(w_t \approx 0.0102\).

So the ELBO weighting pours most of its gradient into the smallest timesteps, where the input is almost clean and the task is imperceptible high-frequency denoising. Those terms matter enormously for log-likelihood — they are where the last fractions of a bit live — and barely at all for whether the image looks right. Uniform weighting redirects capacity to moderate and large \(t\), where global structure is decided.

The loop

Because \(\mathbf{x}_t\) is available in one shot, training never simulates the chain:

for x0 in loader:                                  # x0: (B, C, H, W), roughly in [-1, 1]
    t   = torch.randint(0, T, (x0.size(0),), device=x0.device)
    eps = torch.randn_like(x0)
    a   = alpha_bar[t].view(-1, 1, 1, 1)           # precomputed cumulative product
    xt  = a.sqrt() * x0 + (1 - a).sqrt() * eps     # the closed-form jump
    loss = F.mse_loss(model(xt, t), eps)           # that is the whole objective
    loss.backward(); opt.step(); opt.zero_grad()

Four substantive lines. There is no discriminator, no sampling inside the loop, no adversarial balance to maintain — the reason diffusion training is famously hard to destabilise.

One network, a thousand noise levels

The t argument is doing real work. The denoising problem at \(t=50\) (\(\bar{\alpha}\approx 0.97\), fine texture) and at \(t=900\) (\(\bar{\alpha}\approx 0.0003\), global layout only) are different tasks that happen to share a distribution over images. Training \(T\) separate networks is infeasible; conditioning one network on \(t\) lets neighbouring noise levels share almost everything, and the schedule is smooth so that sharing is warranted.

The standard mechanism borrows sinusoidal positional encoding: map the integer \(t\) to \(\big[\sin(t\omega_k),\cos(t\omega_k)\big]_k\) with geometrically spaced frequencies, push it through a two-layer MLP, and inject the result into every residual block as a per-channel additive shift (often a scale as well, FiLM-style). Frequency features matter here — a scalar input would force the network to learn a fine partition of a one-dimensional range from scratch, and the highest-frequency components are what let it distinguish \(t=500\) from \(t=505\).

An empirical detail: at sampling time the network is evaluated at timesteps drawn from a subsampled schedule, which may include values never seen in training. Sinusoidal embeddings interpolate smoothly, which is part of why DDIM can subsample an existing model’s schedule without retraining.

References

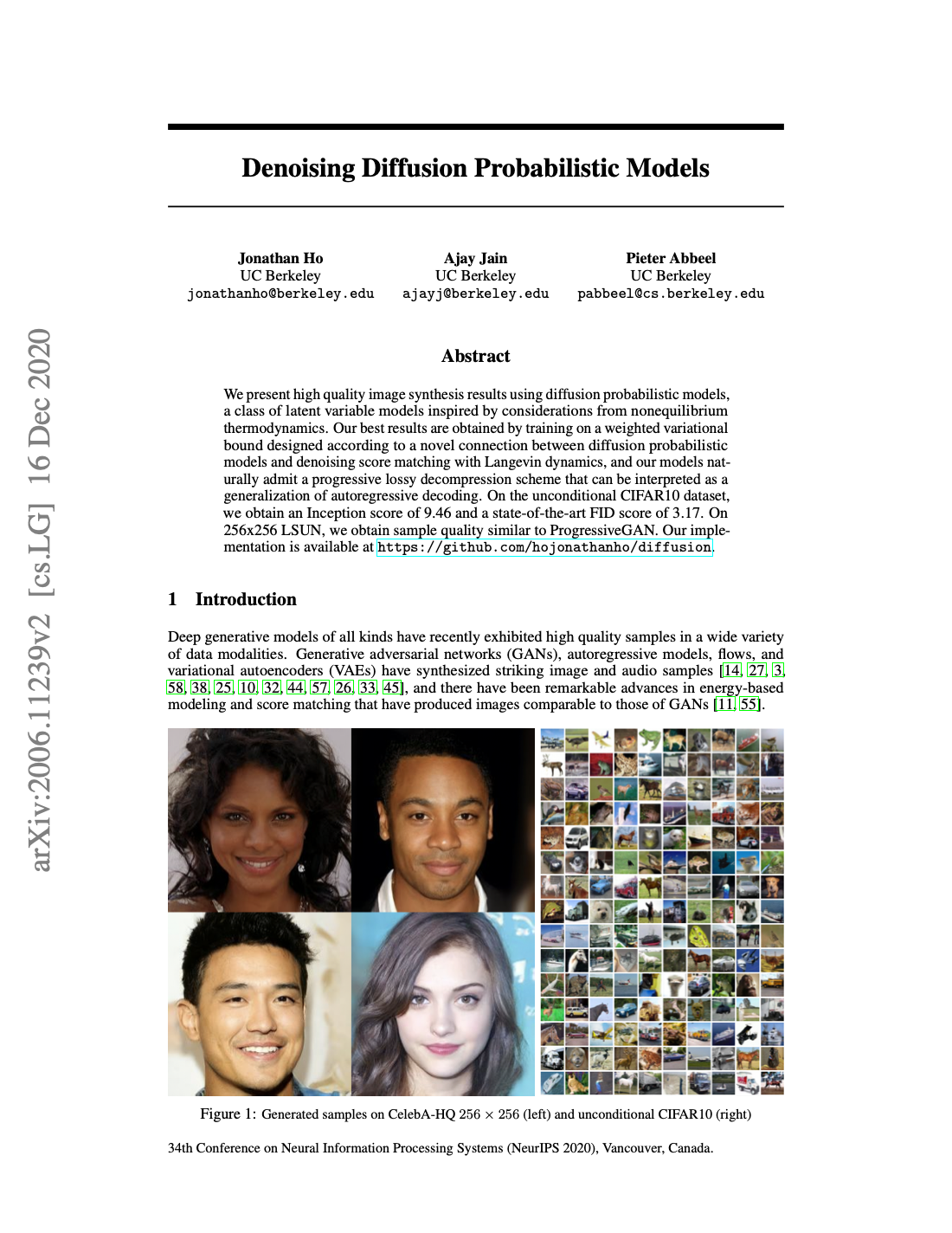

1. Ho, J., Jain, A., & Abbeel, P. Denoising Diffusion Probabilistic Models. NeurIPS 2020.
2. Nichol, A., & Dhariwal, P. Improved Denoising Diffusion Probabilistic Models. ICML 2021.
3. Kingma, D. P., Salimans, T., Poole, B., & Ho, J. Variational Diffusion Models. NeurIPS 2021.
4. Karras, T., Aittala, M., Aila, T., & Laine, S. Elucidating the Design Space of Diffusion-Based Generative Models. NeurIPS 2022.
